Sparse terrain-height reconstruction over a stitched vehicle run

Multiview Cameras 003: sparse terrain-height reconstruction over a stitched vehicle run🔗

Question🔗

Can receipt-backed front-camera depth frames be registered against a long Voidwright drive trace to make a useful terrain-height overlay, while leaving unobserved areas visibly unknown and keeping a front-facing view in the frame?

Method🔗

This was a post-hoc analysis of the disposable V3 gravity fixture. The source world was not started or changed for this rendering step. We combined 80 bounded Red Truck drive-to-coordinate operations, covering 2026-10-08 04:32–11:27 UTC, and 64 receipt-validated depth captures from the truck's front camera (109088616374925990) on grid 138162475347618642. The depth captures span 04:35–11:30 UTC. They are observations from the same fixture and route period, not images from a native framebuffer.

Each depth raster is 64×36 pixels, 120° horizontal FOV, and 25 m range. For every non-miss pixel, its recorded camera basis and origin were used to reconstruct a world-space ray hit. We retained hits attributed to MyVoxelPhysics whose measured surface normal had dot product ≥0.75 with the capture's local gravity-up direction. Points were projected into a gravity-aligned route frame and reduced to the median height in 3 m cells. A cell is shown only with at least two returns. There is no interpolation across empty cells.

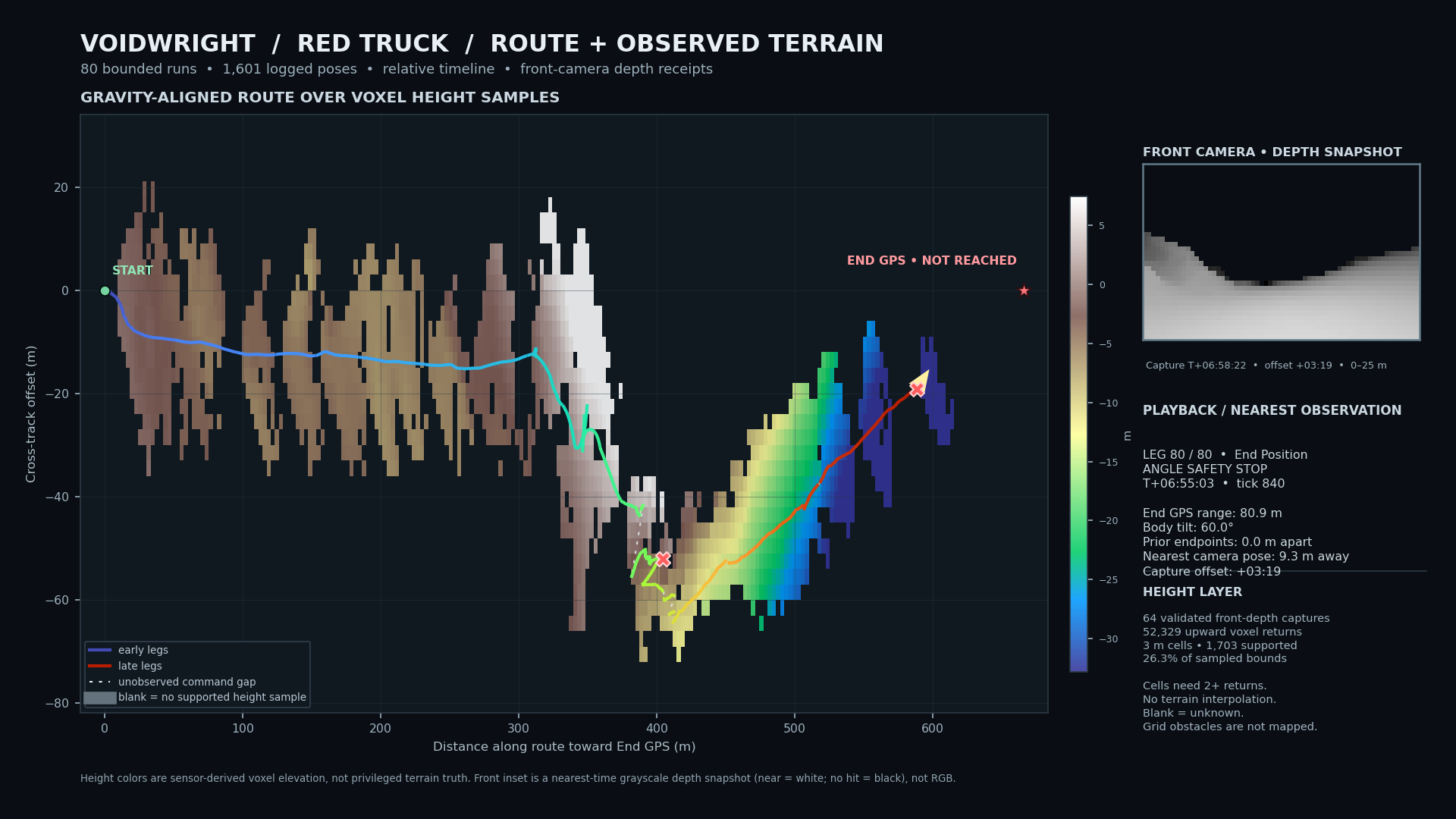

The drive telemetry is drawn over that static height layer. Solid segments connect poses observed within a bounded command. Dotted segments mark only the known displacement between commands; the motion through those gaps is unknown. The small front-camera panel shows the nearest-in-time depth raster snapshot, with its capture time offset shown explicitly. It is a grayscale range image—not RGB, not a HoloView render, and not a native game screenshot.

Results🔗

The 80 operations contain 1,601 logged vehicle poses: 5 ended as complete, 72 timed out, and 3 stopped at the attitude safety limit. Within-command logged travel sums to 703.55 m, and the final position is 590.34 m from the initial position. The End GPS distance fell from 668.33 m to 80.90 m. The last operation stopped at 60.0° body tilt; the End GPS was not reached. Eight between-command endpoint gaps exceed 1 m; the largest is 18.19 m.

The sensor frames contain 58,794 voxel returns, of which 52,329 pass the upward-facing-normal filter. The 3 m aggregation supports 1,703 of 6,464 cells in the sampled bounds (26.3%); the remaining cells are deliberately blank. Capture origins are near the logged route: in a spatial nearest-neighbor comparison against the full pose trace, the worst camera-origin-to-route-pose separation is 9.27 m. Displayed terrain heights are relative to the route's gravity-up projection, not absolute planetary elevation. The display clips its color scale to the 3rd–97th percentile of retained points.

Figures and artifacts🔗

The published video uses the same 80-run stitched route and sparse sensor-derived height layer described here:

Watch “Voidwright: Learning the Lay of the Land” on YouTube.

Open the full stitched route animation (MP4).

The renderer source and run receipts remain in the local working bundle for now; the source-code and data bundle still needs to be staged before this record can be called fully reproducible.

Interpretation and limits🔗

This is a positive result for a narrow integration capability: receipt-backed front-depth samples can be registered alongside a long vehicle telemetry trace and displayed as a sparse, gravity-aligned surface-height layer with an honestly time-offset front-depth inset. It is a mixed result for the driving task: substantial motion was recorded, but the route ended at its angle-safety cutoff rather than at the End GPS.

The terrain layer was built after the drive. It was not supplied to the controller and does not show that Voidwright used perception to navigate. It is not a complete digital elevation model: the forward camera sees only surfaces in its field of view and range, steep surfaces are suppressed by the normal filter, and the grid-built course obstacles are not represented in this voxel-only layer. A blank cell means “not sufficiently observed,” not “flat” or “clear.” The between-command dotted lines are not recovered paths.

No native RGB/framebuffer footage was captured for this exact stitched run. The inset is a single nearest-time ray-depth observation at each playback position, not a continuous camera movie. The final summary's nearest capture is 3m19s after the final logged pose; the offset is shown rather than hidden.

Reproduction and provenance🔗

The route selection is the 80-run set for controller 90164788286885540 in fixture bebd44898770362960c21201ebf851bf, ending at the final attitude-limit operation. The depth set is restricted to passing sensor receipts for the same fixture, grid, and front camera, with capture times from 04:32 to 11:36 UTC. The renderer checks the receipt-recorded SHA-256 digests for metadata, depth, entity IDs, and surface normals before using a frame.

The selected raw route receipts, sensor inputs, and renderer source remain local and are not included in the public projection. The rendered summary figure and video are the only explicit public media assets for this note.
